JYWQ series all stainless steel automatic mixing submersible sewage pump

JYwQ series automatic mixing sewage pump adopts automatic mixing device on the basis of flexible sewage pump. The device rotates with the motor shaft to produce extremely strong stirring power, which stirs the sediment in the sewage tank into suspended and sinks and sucks it into the pump. Discharge, improve the pump's anti-blocking and sewage discharge capabilities, complete drainage, cleaning, and silt removal at one time, saving operating costs, and it is an environmentally friendly product with obvious advancement and practicality.

E-mail: [email protected]

product details

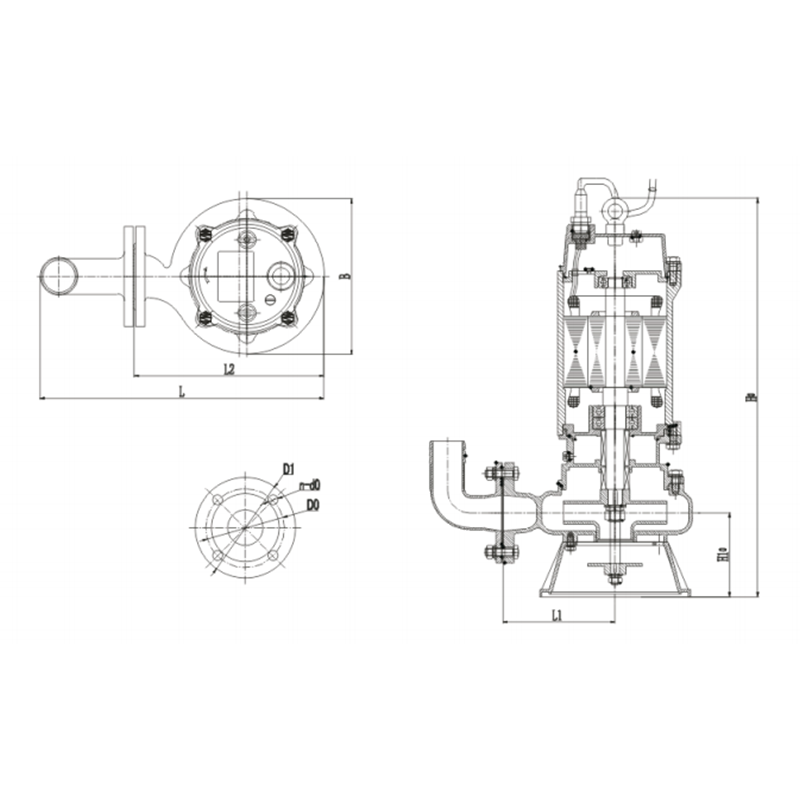

Serial number model Rated meteor Rated head rated power Stirring diameter Voltage Pipe diameter Rotating speed Overall installation size Pump outlet size
（m³/h) (m） (kw) (mm) (v) (mm) (r/min) L L1 12 B H H1 D D0 n-d0 D1
1 50JYWQ10-10-0.75S 10 10 0. 75 1200 380 50 2900 349 140 246 212 475 110 Φ50 Φ110 4-Φ14 Φ140
2 65JYWQ15-6-0.75S 15 6 0. 75 1200 380 65 2900 353 140 246 212 475 110 Φ65 Φ130 4-Φ14 Φ160
3 50JYWQ15-10-1.1S 15 10 1. 1 1200 380 50 2900 353 140 246 212 505 110 Φ50 Φ110 4-Φ14 Φ140
4 65JYWQ20-6-1.1S 20 6 1. 1 1200 380 65 2900 353 140 246 212 505 110 Φ65 Φ130 4-Φ14 Φ160
5 50JYWQ15-15-1.5S 15 15 1. 5 1400 380 50 2900 353 140 246 212 522 110 Φ50 Φ110 4-Φ14 Φ140
6 65JYWQ25-7-1.5S 25 7 1. 5 1400 380 65 2900 353 140 246 212 522 110 Φ65 Φ130 4-Φ14 Φ160
7 50JYWQ15-20-2.2S 15 20 2. 2 1400 380 50 2900 369 158 266 217 558 118 Φ50 Φ110 4-Φ14 Φ140
8 65JYWQ25-15-2.2S 25 15 2. 2 1400 380 65 2900 385 161 267 220 557 119 Φ65 Φ130 4-Φ14 Φ160
9 80JYWQ40-9-2.2S 40 9 2. 2 1400 380 80 2900 431 169 283 228 564 122 Φ76 Φ150 4-Φ17.5 Φ190
10 100JYWQ50-7-2.2S 50 7 2. 2 1400 380 100 2900 480 180 302 244 579 129 Φ100 Φ170 4-Φ17.5 Φ210
11 50JYWQ15-25-3S 15 25 3 1400 380 50 2900 389 168 286 236 575 117 Φ50 Φ110 4-Φ14 Φ140
12 65JYWQ25-20-3S 25 20 3 1400 380 65 2900 406 169 288 238 580 119 Φ65 Φ130 4-Φ14 Φ160
13 80JYWQ40-15-3S 40 15 3 1400 380 80 2900 448 176 300 255 588 121 Φ76 Φ150 4-Φ17.5 Φ190
14 100JYWQ50-10-3S 50 10 3 1400 380 100 2900 502 191 324 265 605 129 Φ100 Φ170 4-Φ17.5 Φ210
15 50JYWQ15-32-4S 15 32 4 1600 380 50 2900 389 168 286 236 600 117 Φ50 Φ110 4-Φ14 Φ140
16 65JYWQ25-25-4S 25 25 4 1600 380 65 2900 406 169 288 238 605 119 Φ65 Φ130 4-Φ14 Φ160
17 80JYWQ40-18-4S 40 18 4 1600 380 80 2900 448 176 300 255 613 121 Φ76 Φ150 4-Φ17.5 Φ190
18 100JYWQ50-15-4S 50 15 4 1600 380 100 2900 502 191 324 265 630 129 Φ100 Φ170 4-Φ17.5 Φ210
19 50JYWQ20-32-5.5S 20 32 5. 5 1800 380 50 2900 425 189 322 266 722 158 Φ50 Φ110 4-Φ14 Φ140
20 65JYWQ30-25-5.5S 30 25 5. 5 1800 380 65 2900 440 189 322 266 724 159 Φ65 Φ130 4-Φ14 Φ160
21 80JYWQ50-18-5.5S 50 18 5. 5 1800 380 80 2900 490 200 342 284 747 172 Φ76 Φ150 4-Φ17.5 Φ190
22 100JYWQ80-10-5.5S 80 10 5. 5 1800 380 100 2900 528 202 350 295 755 174 Φ100 Φ170 4-Φ17.5 Φ210
23 150JYWQ100-7-5.5S 100 7 5. 5 1800 380 150 2900 608 225 379 308 772 183 Φ150 Φ225 8-Φ17.5 Φ265
24 50JYWQ20-40-7.5S 20 40 7. 5 2000 380 50 2900 437 189 334 289 722 158 Φ50 Φ110 4-Φ14 Φ140
25 65JYWQ30-32-7.5S 30 32 7. 5 2000 380 65 2900 462 199 344 289 735 166 Φ65 Φ130 4-Φ14 Φ160
26 80JYWQ45-22-7.5S 45 22 7. 5 2000 380 80 2900 493 200 345 289 747 172 Φ76 Φ150 4-Φ17.5 Φ190
27 100JYWQ80-15-7.5S 80 15 7. 5 2000 380 100 2900 528 202 350 295 755 174 Φ100 Φ170 4-Φ17.5 Φ210
28 150JYWQ100-10-7.5S 100 10 7. 5 2000 380 150 2900 608 225 379 308 772 183 Φ150 Φ225 8-Φ17.5 Φ265
29 65JYWQ30-50-11S 30 50 11 2000 380 65 2900 480 218 362 288 927 180 Φ65 Φ130 4-Φ14 Φ160
30 80JYWQ45-42-11S 45 42 11 2000 380 80 2900 512 220 364 288 933 186 Φ76 Φ150 4-Φ17.5 Φ190
31 100JYWQ100-20-11S 100 20 11 2000 380 100 2900 528 202 349 295 924 179 Φ100 Φ170 4-Φ17.5 Φ210
32 150JYWQ180-11-11S 180 11 11 2000 380 150 2900 608 224 379 308 935 183 Φ150 Φ225 8-Φ17.5 Φ265
33 65JYWQ030-60-15S 30 60 15 2000 380 65 2900 480 218 362 288 927 180 Φ65 Φ130 4-Φ14 Φ160
34 80JYWQ45-52-15S 45 52 15 2000 380 80 2900 512 220 364 288 933 186 Φ76 Φ150 4-Φ17.5 Φ190
35 100JYWQ100-25-15S 100 25 15 2000 380 100 2900 528 202 349 295 924 179 Φ100 Φ170 4-Φ17.5 Φ210
36 150JYWQ180-15-15S 180 15 15 2000 380 150 2900 608 224 379 308 935 183 Φ150 Φ225 8-Φ17.5 Φ265
Serial number model Rated meteor Rated head rated power Voltage Pipe diameter Rotating speed Overall installation size Pump outlet size
（m³/h) (m） (kw) (v) (mm) (r/min) L L1 12 B H H1 D D0 n-d0 D1
1 100WQ100-20-11S 100 20 11 380 100 1450 798 359 620 521 1008 208 Φ100 Φ170 4-Φ17.5 Φ210
2 150WQ180-11-11S 180 11 11 380 150 1450 795 325 566 485 1017 212 Φ150 Φ225 8-Φ17.5 Φ265
3 200WQ250-7-11S 250 7 11 380 200 1450 / 323 558 470 1037 222 Φ200 Φ280 8-Φ18.5 Φ326
4 100WQ100-25-15S 100 25 15 380 100 1450 798 359 620 521 1008 208 Φ100 Φ170 4-Φ17.5 Φ210
5 150WQ180-15-15S 180 15 15 380 150 1450 795 325 566 485 1017 212 Φ150 Φ225 8-Φ17.5 Φ265
6 200WQ250-11-15S 250 11 15 380 200 1450 / 323 558 470 1037 222 Φ200 Φ280 8-Φ18.5 Φ326
7 100WQ100-30-18.5S 100 30 18. 5 380 100 1450 800 359 620 521 1047 208 Φ100 Φ170 4-Φ17.5 Φ210
8 150WQ180-20-18. 5S 180 20 18. 5 380 150 1450 856 372 627 510 1030 271 Φ150 Φ225 8-Φ17.5 Φ265
9 200WQ250-15-18.5S 250 15 18. 5 380 200 1450 / 395 670 550 1045 225 Φ200 Φ280 8-Φ18.5 Φ326
10 100WQ100-35-22S 100 35 22 380 100 1450 800 359 620 521 1047 208 Φ100 Φ170 4-Φ17.5 Φ210
11 150WQ180-25-22S 180 25 22 380 150 1450 856 372 627 510 1030 271 Φ150 Φ225 8-Φ17.5 Φ265
12 200WQ250-20-22S 250 20 22 380 200 1450 / 395 670 550 1045 225 Φ200 Φ280 8-Φ18.5 Φ326
